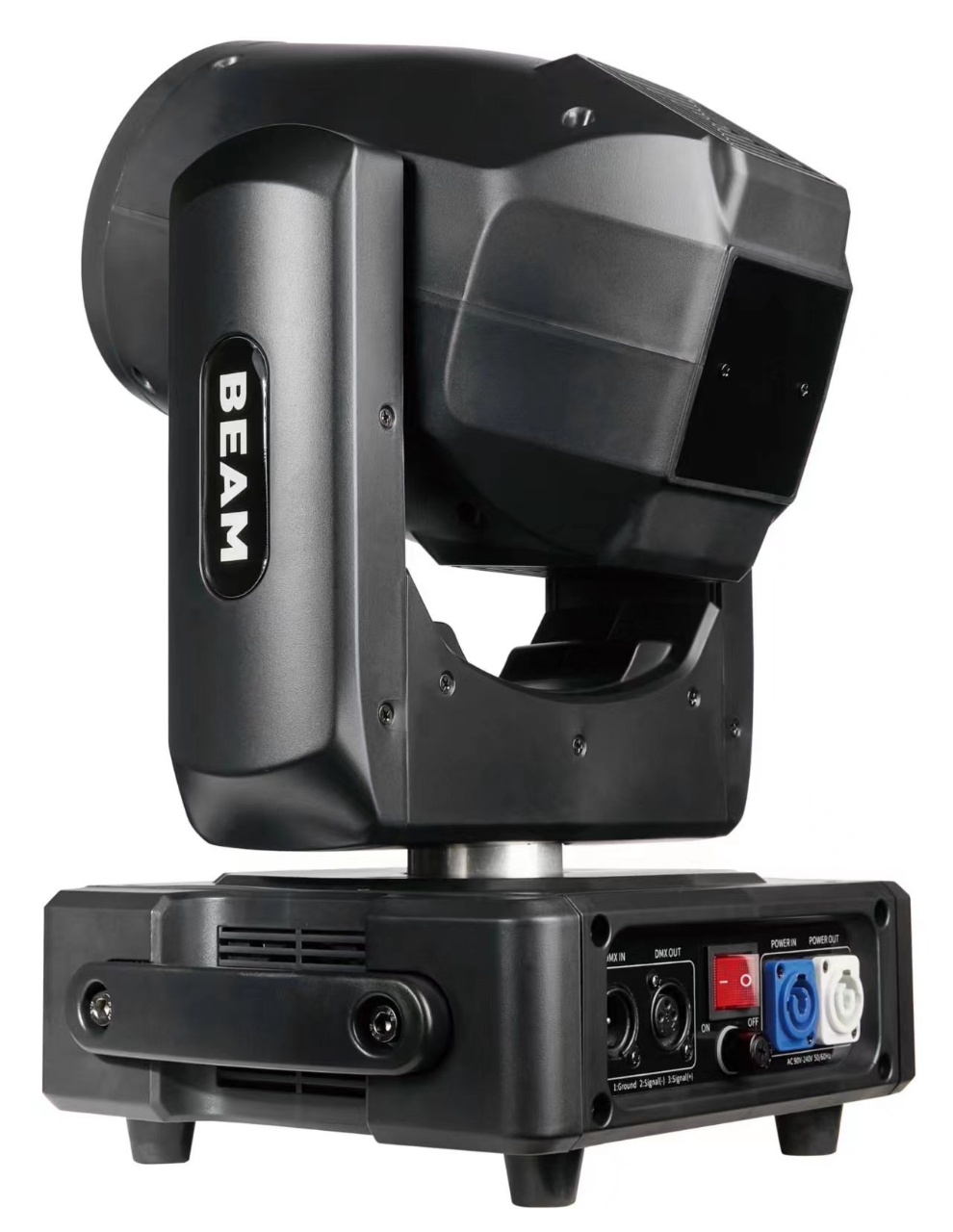

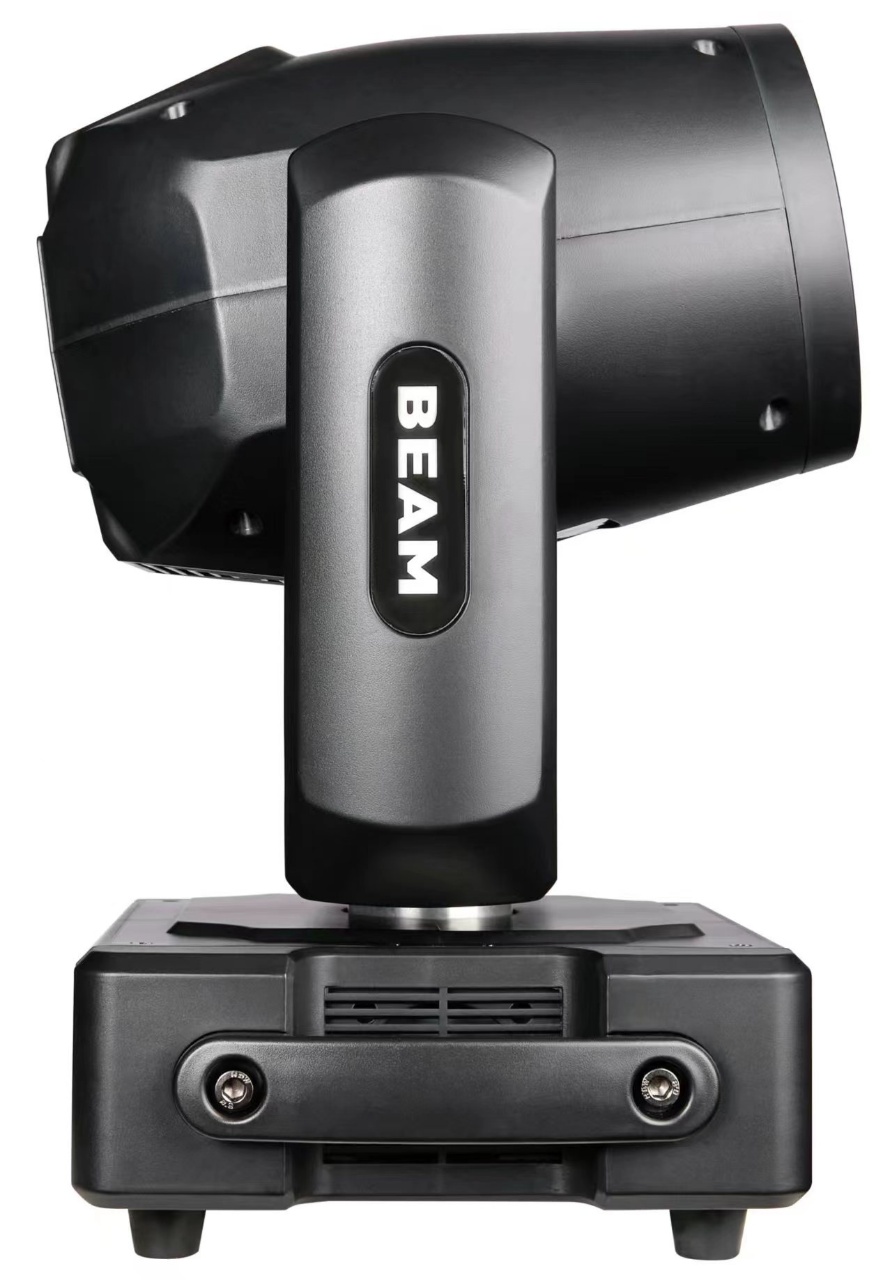

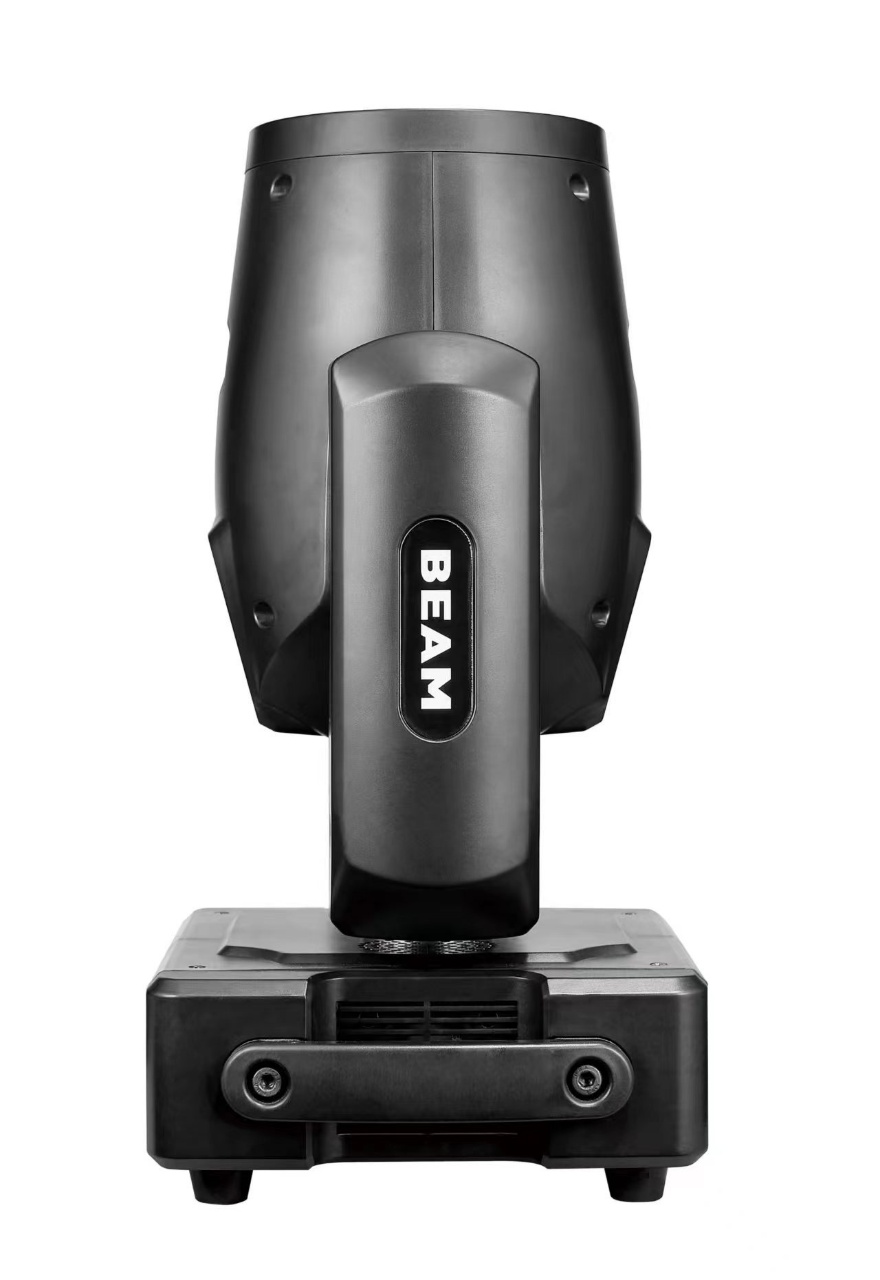

230 beam
Technical parameters:
1. Model of bulb provided: Customized 230W bulb
2. Control: Control the switch bulb or manually
3. Ballast: Electronic ballast (380V input)
4. Power supply: Power supply power 450W (90-240V input)
5. Main color palette: 13 colors+white light, atomization+rainbow effect, 14 colors linearly mixed
6. Pattern plate: 15 fixed patterns, flowing pattern effect, shaking pattern effect, pattern can be positioned at any angle, and the pattern can rotate clockwise or counterclockwise
7. Strobe: Independent strobe channel, 1-10 times/second, built-in macro function
8. Dimming: Independent dimming channel, 0-100 linear precise dimming
9. Atomization: Independent linear atomization
10. Special effects: One (8+16+24) prism effect, magnification effect
Prism and arbitrary angle positioning, rotation, built-in program for prism pattern combination, precise electric focusing
11. X/Y axis motion: X axis 540 °, Y axis 270 °, X/Y axis with automatic error correction function, independent X/Y axis speed adjustment, rotation fine-tuning function
12. X/Y-axis resolution: 8/16 bits
13. Control and programming: 16 standard DMX512 channels
Built in microphone for voice control effect
Packaging size: 50 * 34.5 * 36.5cm
Gross weight: 12kg
Mini Beam230
-AC Power：110-240,50/60Hz
-Lamp:230W Lamp
-Lamp control :control by dmx or control by hand
-Color :13colors+white with rainbow effect
-Gobo: 14fixed gobos+white
-Strobe：1-10times/second
-Dimming:0-100% linear adjustment
-Frost: Linear frost
-Prism: Rotaing8+16+24 prisms
-Pan:540°, Till:280°
-Pan/Till resolution:8/16 bit
-Control mode: -Automatic/ Master-slave/sound / dmx512
-Channel:16CH
-G.W:12kg
-Packing:50*34.5*36.5cm
