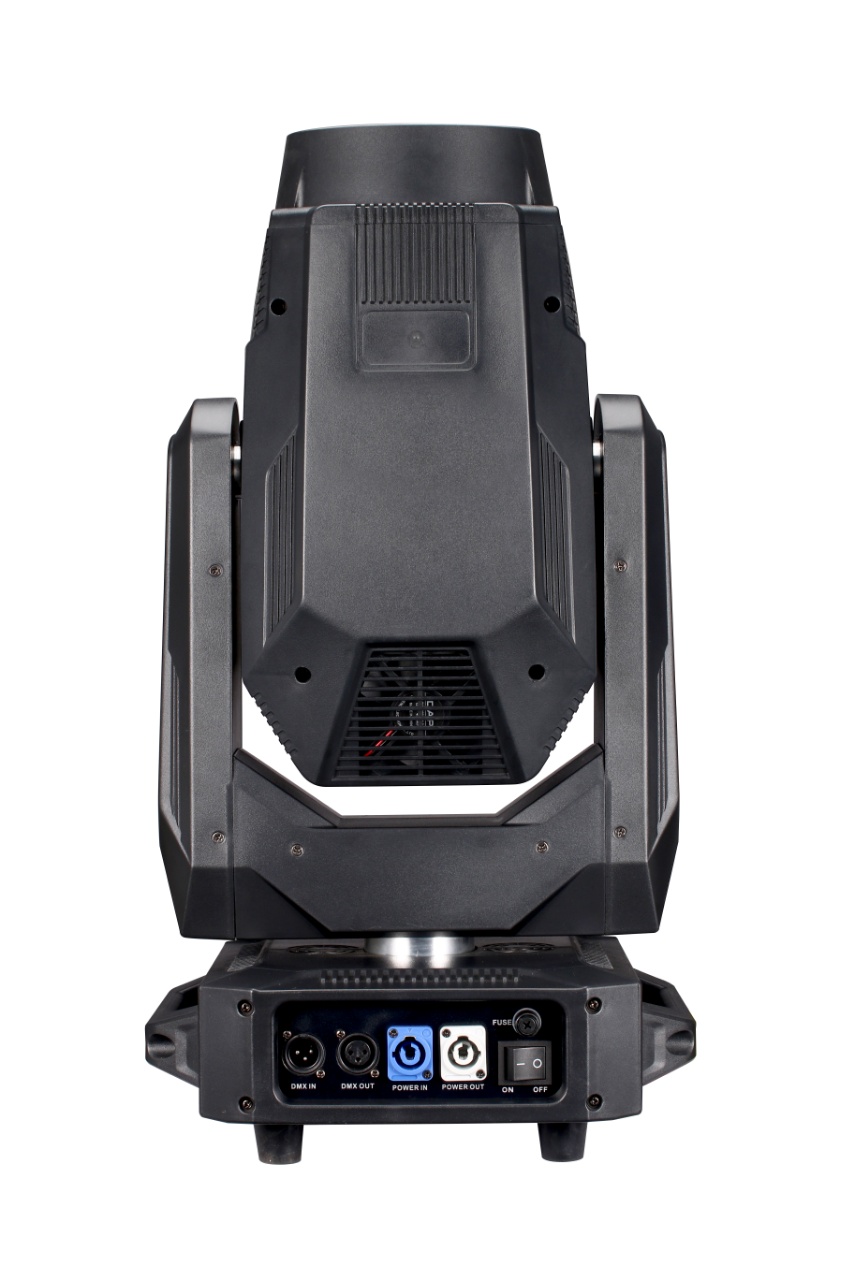

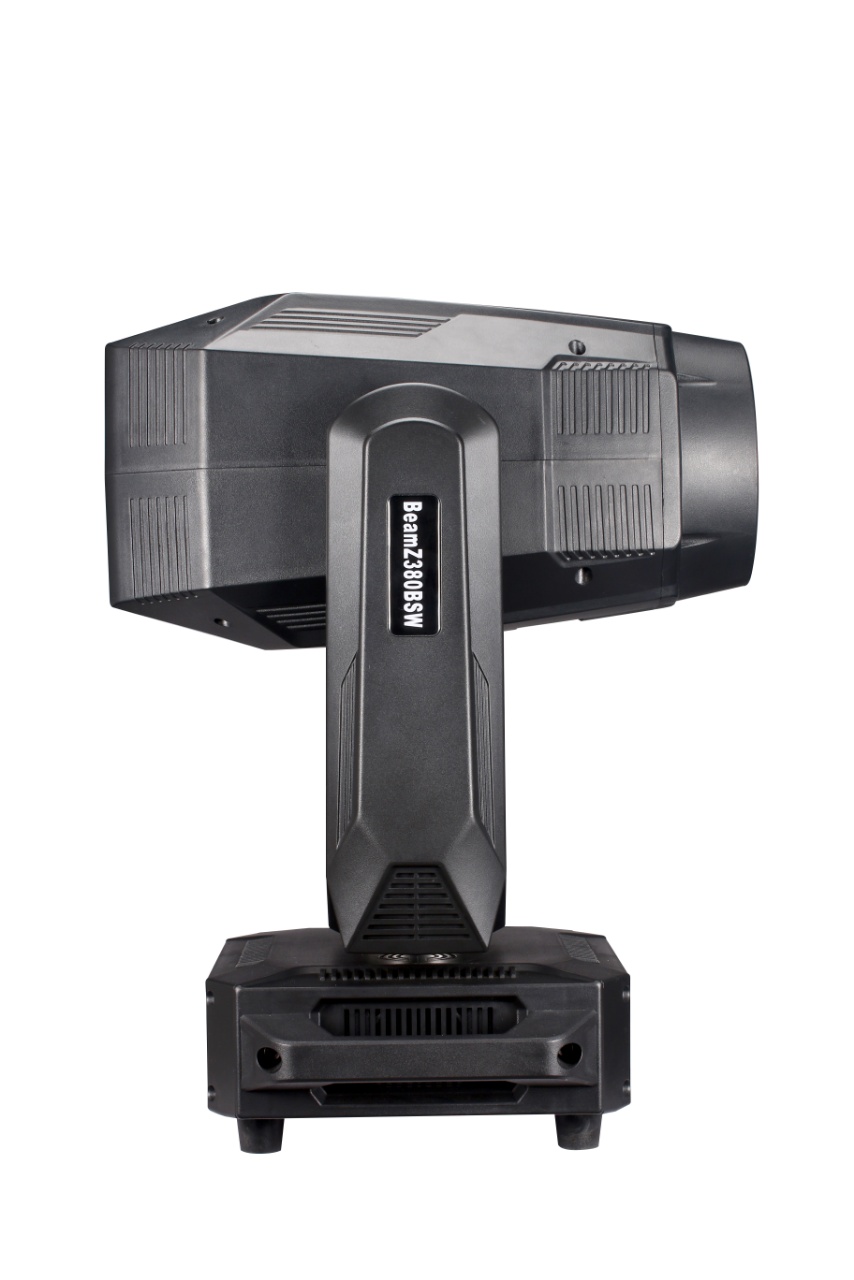

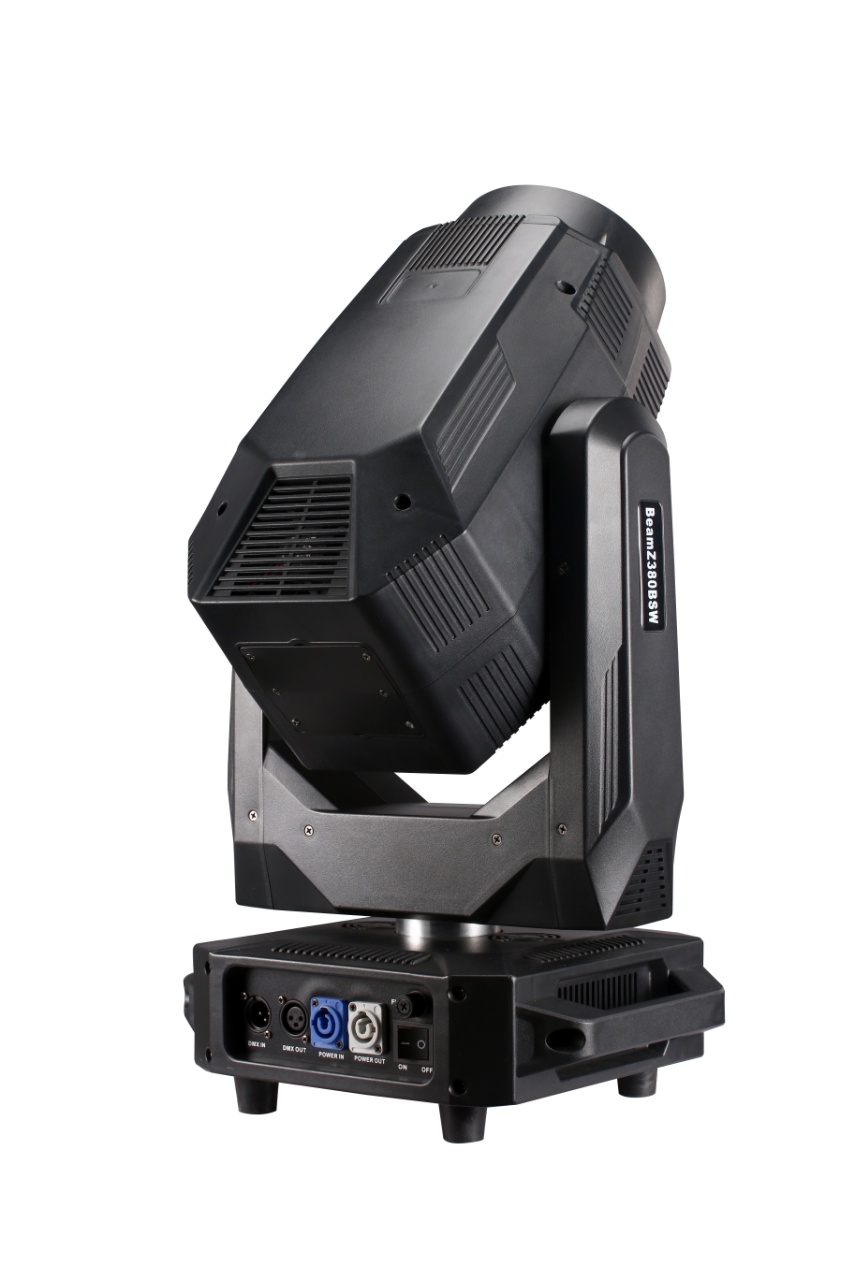

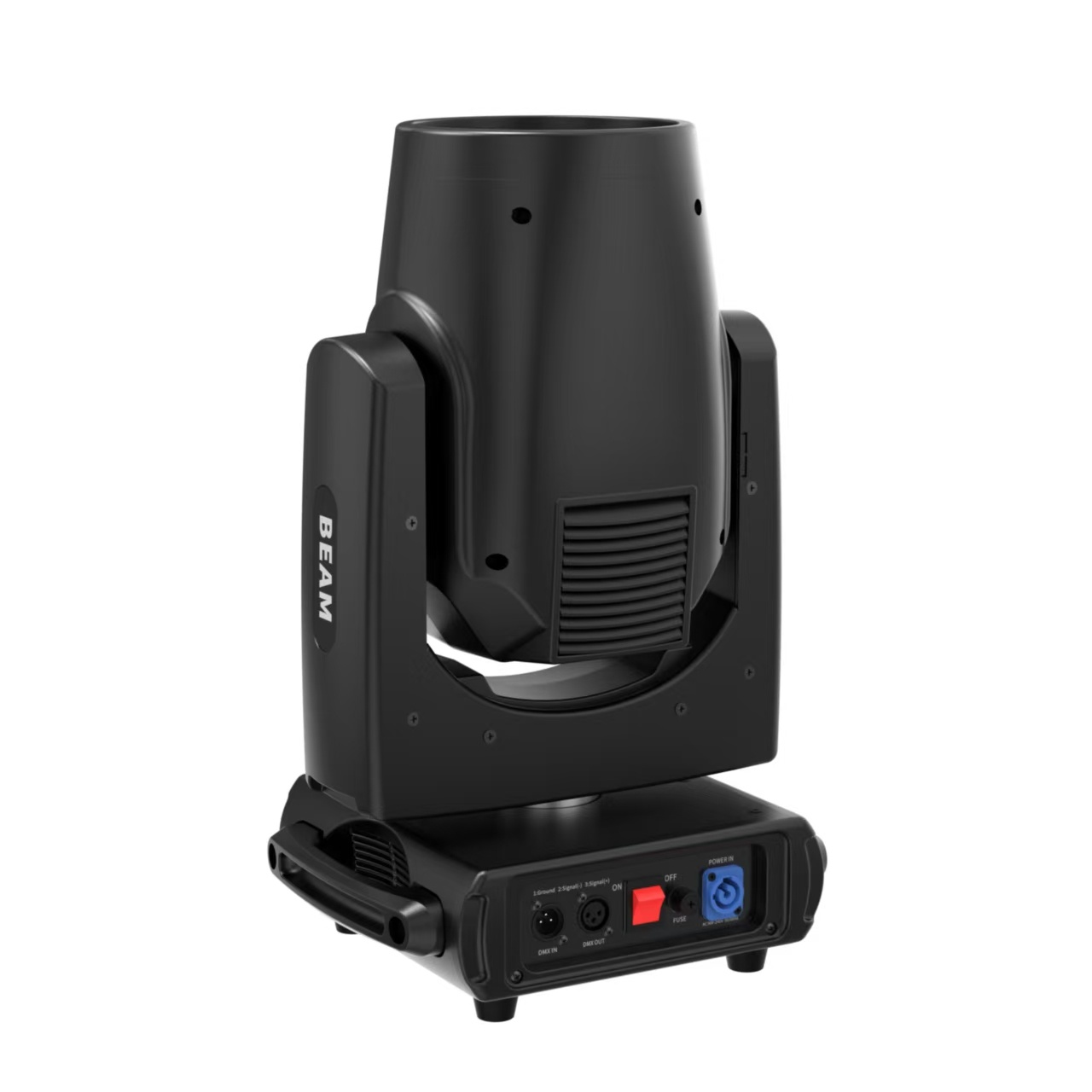

380 three in one
Technical parameters:
Voltage: AC100V-240V, 50/60Hz
Light source: Osram 371 bulb, with an average lifespan of 1500H
Luminous flux: Color temperature can reach 9000K
Features: Pattern, dyeing, and beam three in one lighting fixture, essential equipment for large-scale performance projects and high-end entertainment venues.
Beam angle: Electric focusing, linearly adjustable beam angle of 2.5 ° -60 °.
Linear dimming: Dual piece mechanical dimming, linear dimming from 0 to 100%.
High speed flicker: pulse flicker, synchronous asynchronous flicker, flicker speed of 1-20 times per second.
Fixed color: One fixed color wheel has 9 color chips and white light, which can achieve half color effect, linear color conversion, and bidirectional variable speed rotating rainbow effect.
Dynamic pattern: 1 rotating replaceable pattern wheel with 7 patterns+white light, variable speed shaking/bidirectional flow effect, pattern indexing function and 16 bit precise fine-tuning.
Static pattern: 1 fixed pattern wheel with 9 patterns+white light, variable speed shaking/bidirectional flow effect.
Focusing: Adopting a high-precision glass optical lens system with electronic linear high-definition adjustment.
Effect wheel: 1 rotatable 8-shaped prism, another rotating mirror or 8+16 prism, independent atomization effect, soft and natural light spot atomization function.
Communication design: equipped with DMX three core signal transmission.
Horizontal/Vertical: Horizontal scanning angle of 540 ° (16BIT precision scanning), vertical scanning angle of 270 ° (16BIT precision scanning), using a three-phase motor not only provides fast and smooth scanning but also
eliminates transmission noise.
Display interface: It adopts an ultra wide LCD display screen in both Chinese and English, which is beautiful, simple and convenient to use.
Cooling system: Built in convection fan with overheat protection function.
Control channel: Dual channel mode selection, 16/24CH or custom channel mode.
Protection level: IP20, optional rain cover protection level up to IP44.
Lamp packaging: waterproof and shockproof aviation box or cardboard box.
