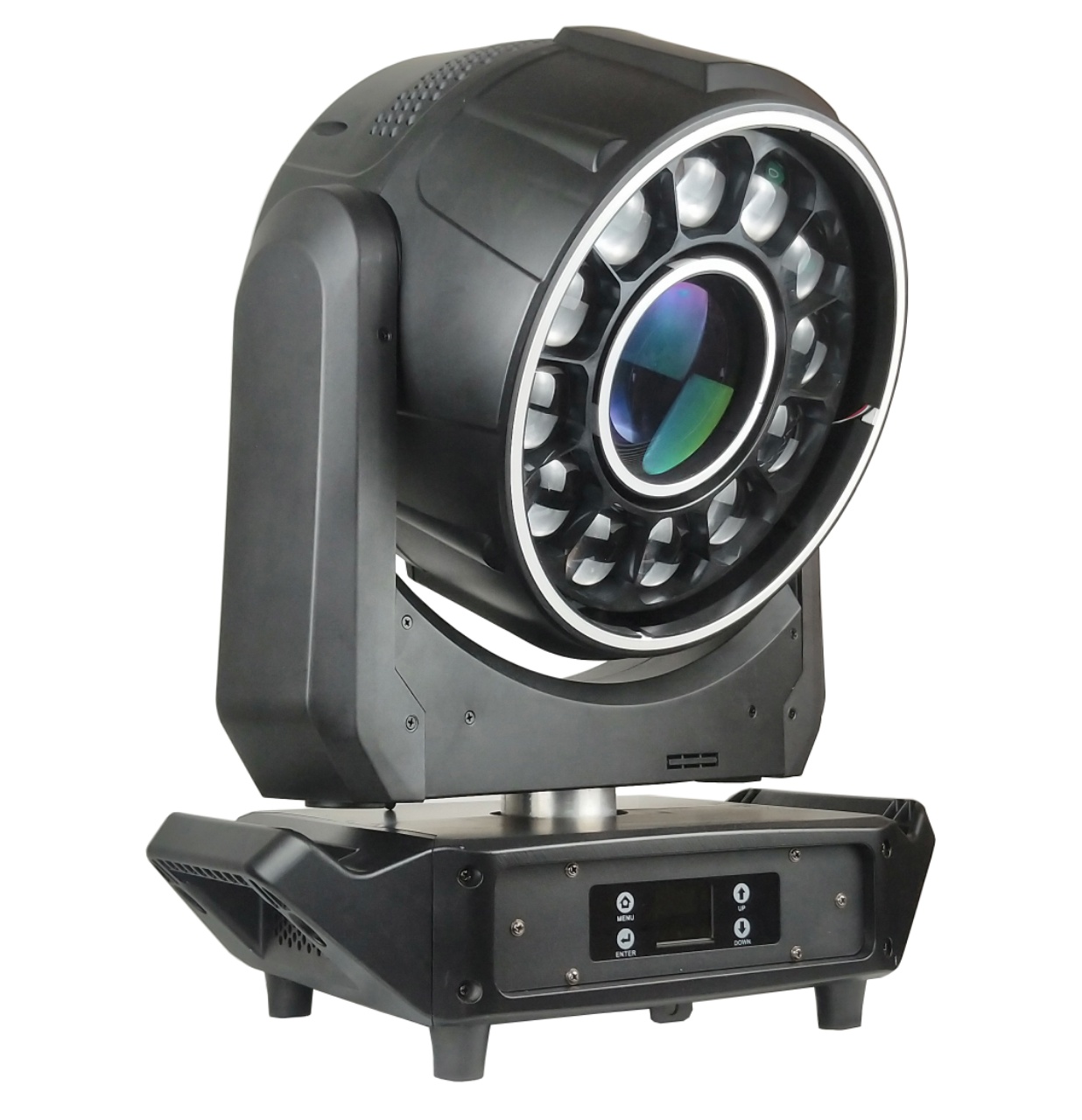

Bee eye beam lamp
technical specifications
light source
Light source:
1 x 200W LED
12 x 40W RGBW LED
Lamp color temperature: 7000K (200W LED)
Luminous flux: 5000 lm (200W LED)
Expected lifespan of LED: 20000 hours
optical system
Beam angle: 3 ° (200W LED)
Zoom angle: 4 ° -51 ° (40W RGBW LED)
Control and Program
4 touch buttons
Control panel: LCD display screen
Control mode: DMX512, RDM
DMX channel mode: 1 type
Control channel: 34 channels
Software upgrade: Update software through DMX connection
X-axis/Y-axis
X-axis rotation angle: 540 °
Y-axis rotation angle: 215 °
Automatic correction of X-axis/Y-axis position out of step
X-axis/Y-axis: 16 bit precision scanning
gobo
1 fixed pattern plate, 9 patterns+white circle
Color palette
1 color palette, 13 fixed colors+white, with rainbow effect
prism
1 8-prism, 1 honeycomb prism, stackable and bidirectionally rotatable
ultrasonic atomizer
A piece of atomizing film
Other effects
Linear CTO color temperature adjustment: 2500K-8000K (40W RGBW LED)
Multiple speed strobe effect
Electric focusing system
0-100% smooth dimming
Electrical and Interface
Input voltage range: 100-240V~50/60Hz
Power: 800W
Power socket: power connector input

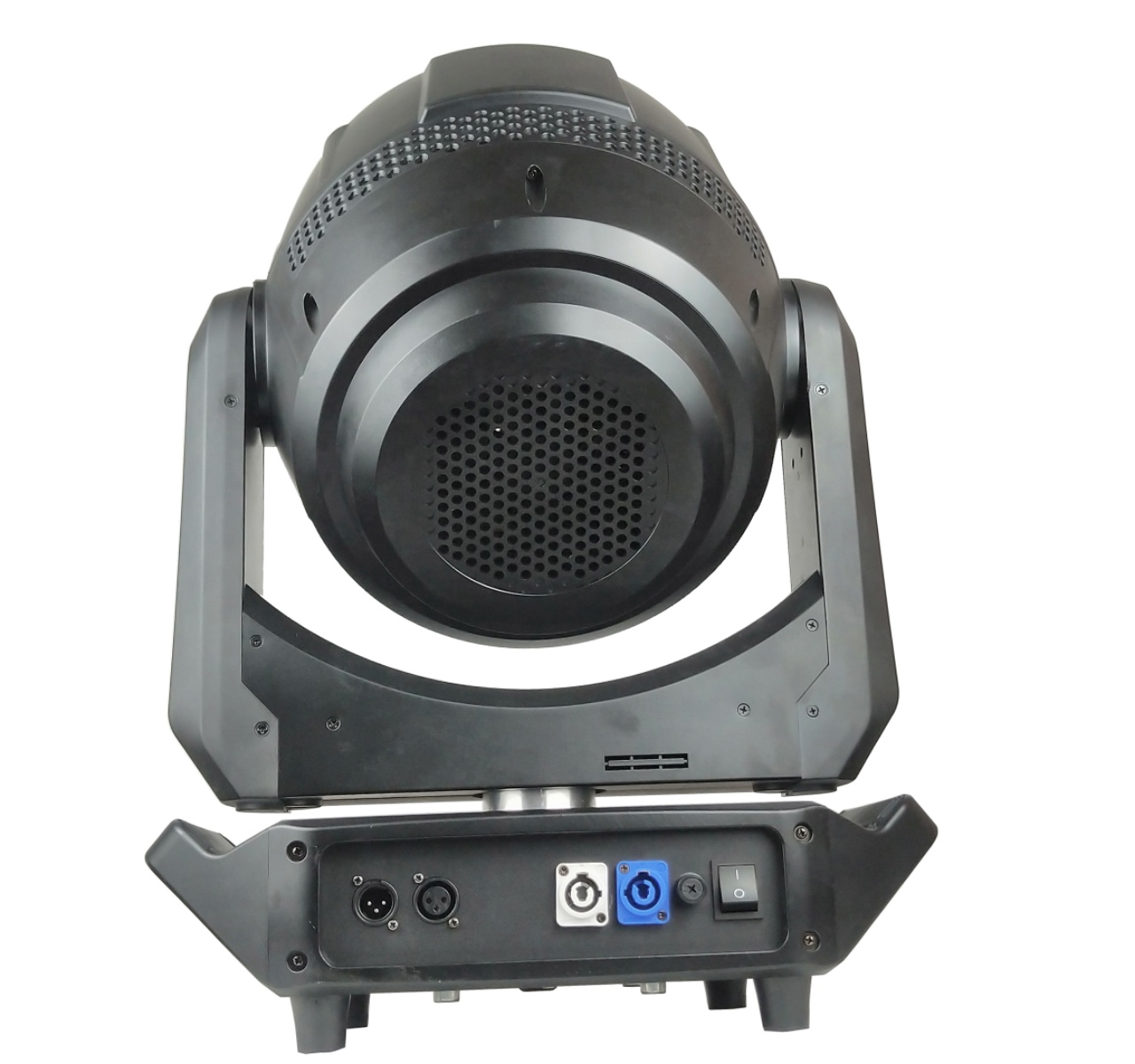

Signal input/output: Three core XLR socket
Lamp size:
Width: 428 mm
Depth: 240mm
Height: 531 mm
Net weight: 25 kg
work environment
Maximum ambient temperature: 40 ° C
Minimum operating temperature: 0 ° C
Maximum surface temperature: 65 ° C
Protection level: IP20
